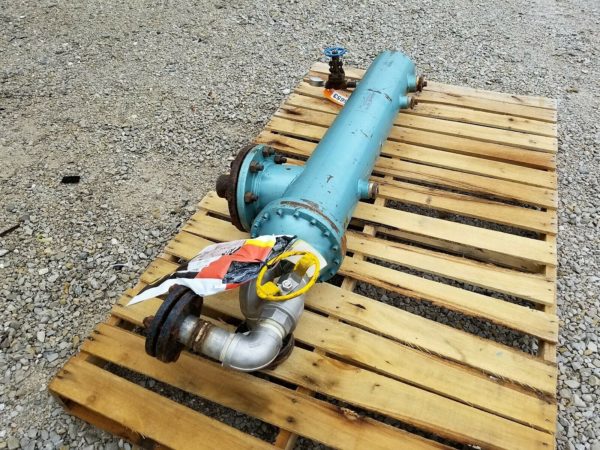

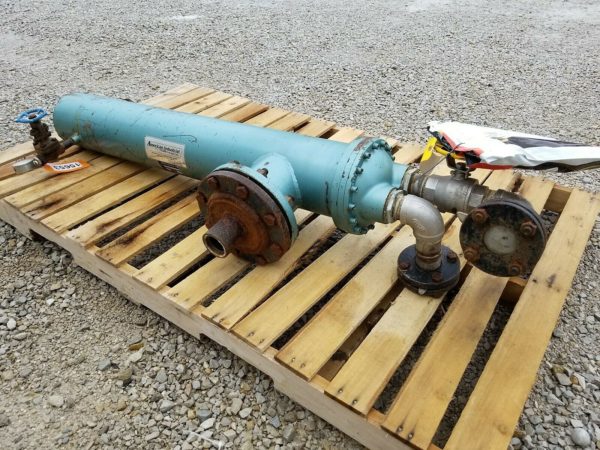

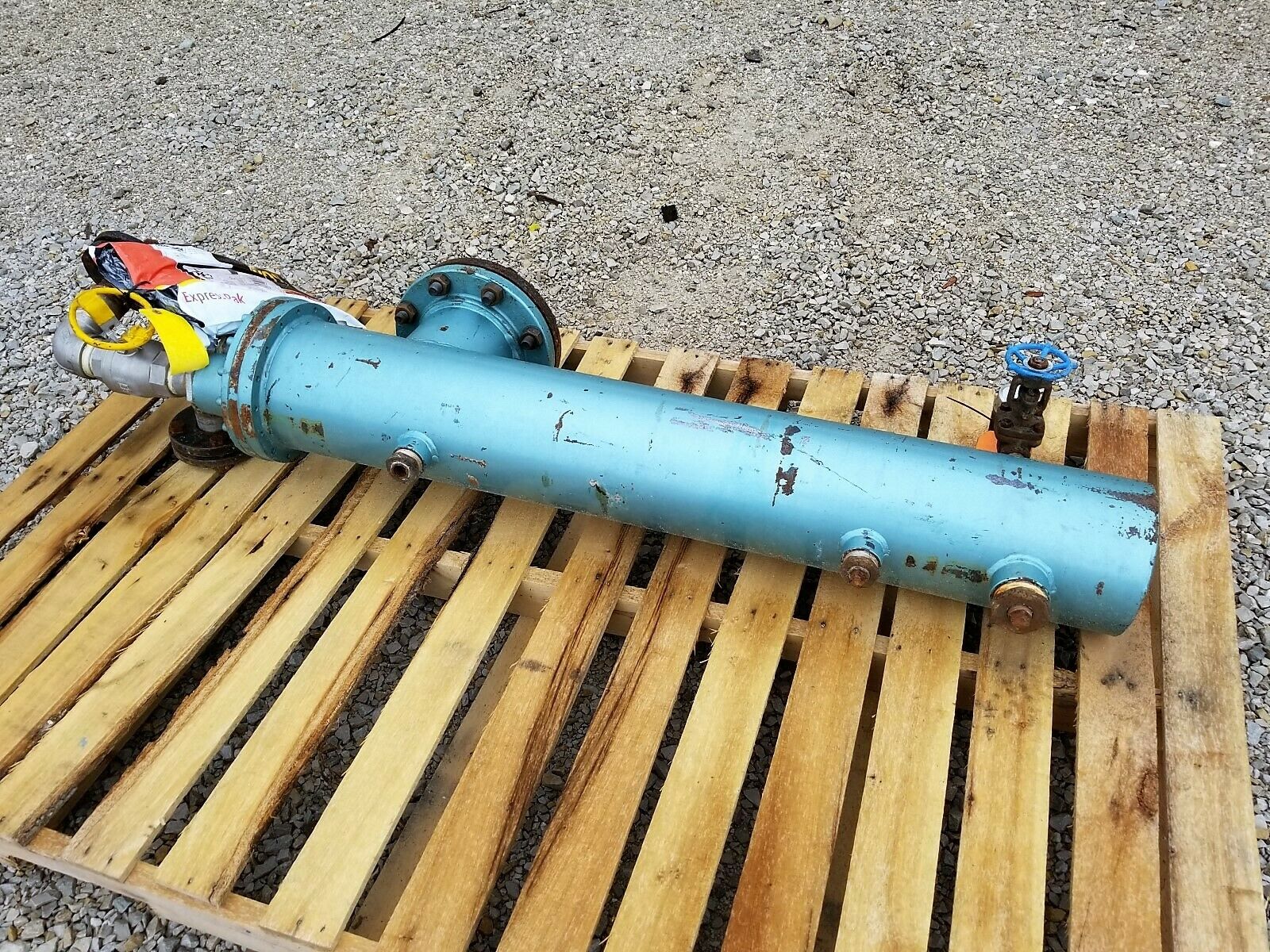

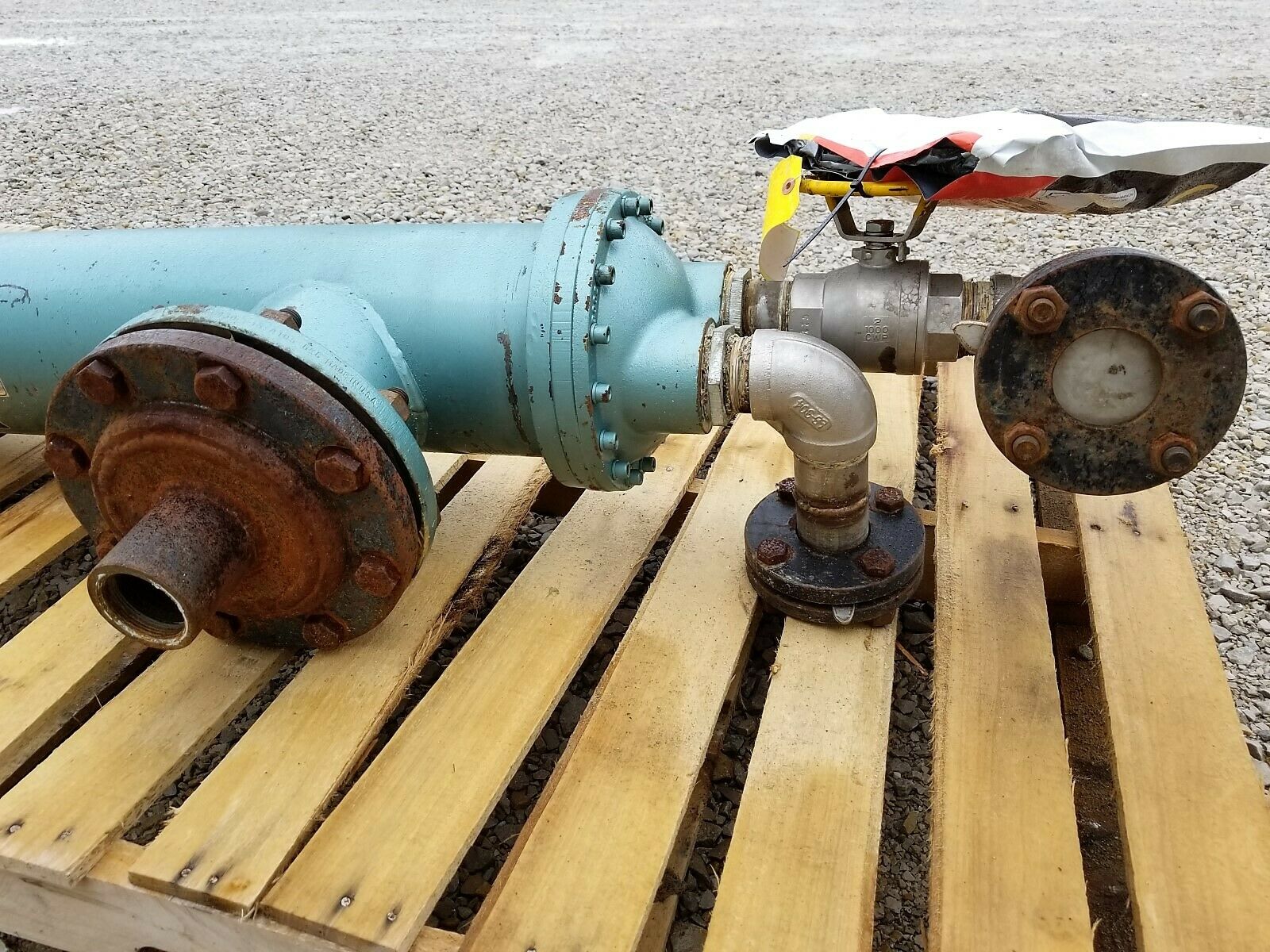

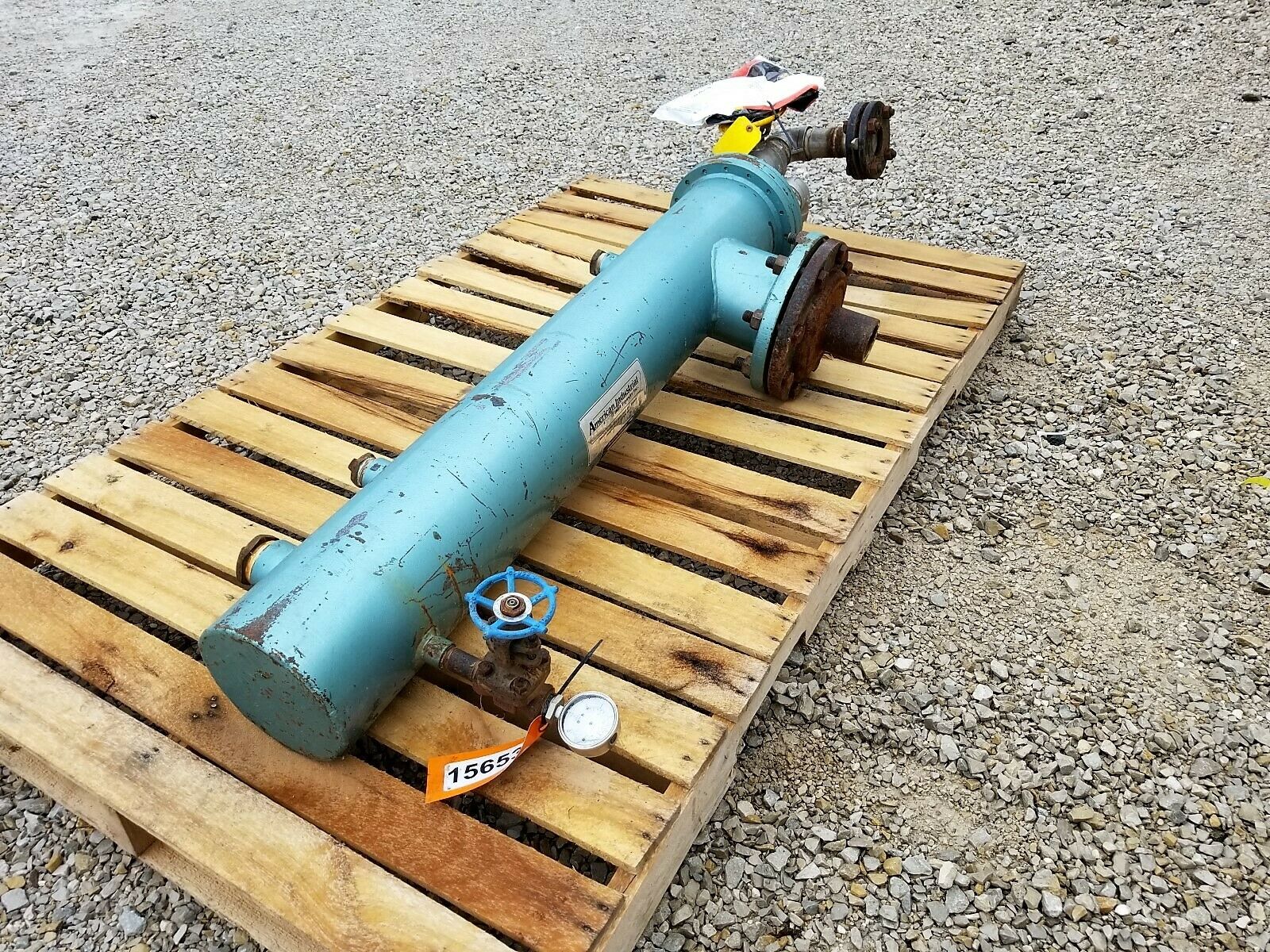

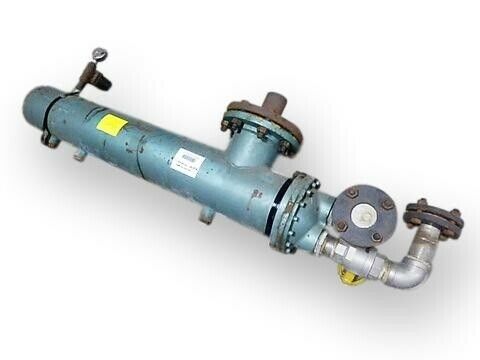

AMERICAN INDUSTRIAL HEAT TRANSFER INC. Shell & Tube Heat Exchanger

Description

Item 15653:   AMERICAN INDUSTRIAL HEAT TRANSFER INC. Shell
& Tube Heat Exchanger

AMERICAN

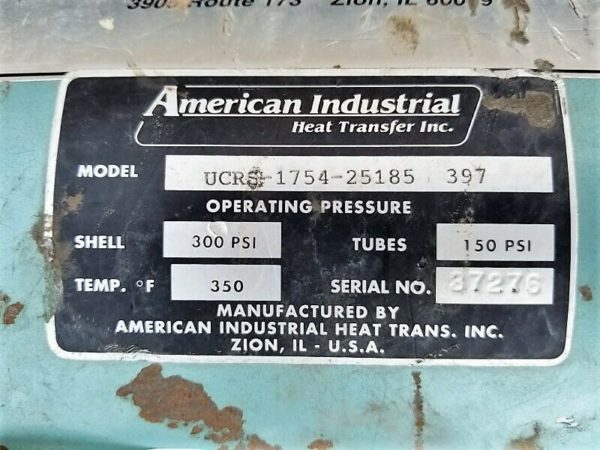

INDUSTRIAL HEAT TRANSFER INC. Shell & Tube Heat Exchanger Model
UCRS-1754-25185 397.   Serial Number
37276, Operating Pressure Shell 300 psi, Tubes 150 psi, Temp. Deg. F 350.  8″ shell diameter; 54″ tube length;
60.13″ overall length.

Removable bundle design.  2-pass, U-tube heat exchanger with removeable tube bundle for fluids with high differential inlet temperatures.

Normally applied when the differential temperature between the hot fluid entering and the cooling fluid entering is 150°F or greater.
U-tube design allows tubing to freely expand and contract independently of the shell. Welded outer shell construction made of carbon steel.
