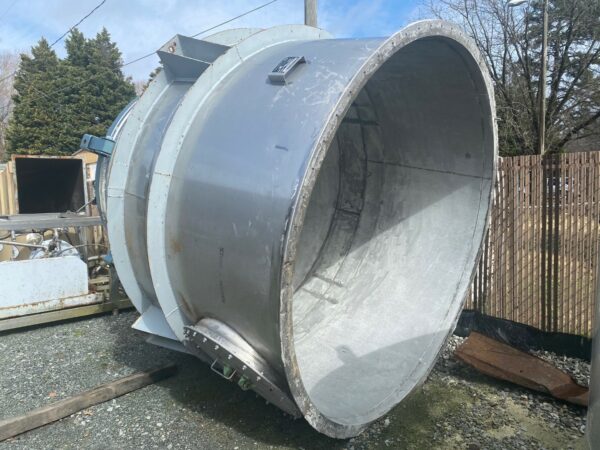

600 CUBIC FOOT STAINLESS BIN WITH 6’ DIAMETER METALFAB BIN ACTIVATOR

Description

ITEM 1638: 600 CUBIC FOOT STAINLESS BIN WITH 6’ DIAMETER METALFAB BIN ACTIVATOR. BIN IS 8’ DIAMETER X 15’- 4” OVERALL HEIGHT INCLUDING THE BIN ACTIVAOR. DESIGNED FOR 55 PCF MATERIAL BULK DENSITY. COMPLETE DRAWINGS ON FILE. BIN WAS BUILT BY IMPERIAL INDUSTRIES JOB # 4153. BIN ACTIVATOR BUILT BY METALFAB, JOP # J-890109.

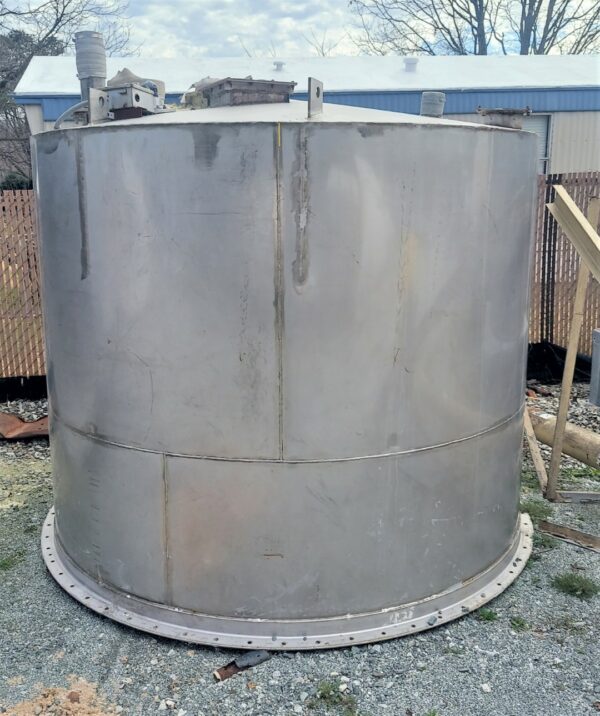

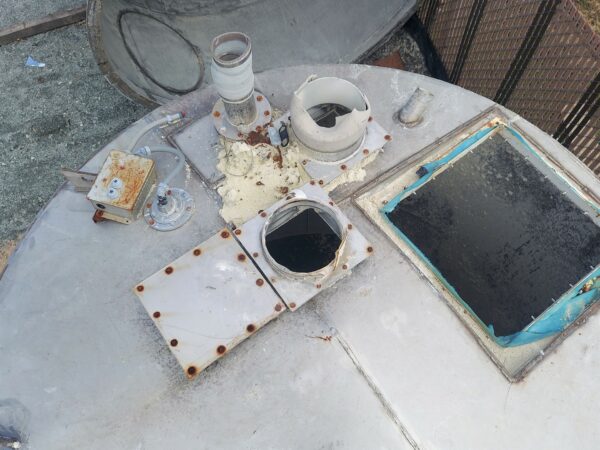

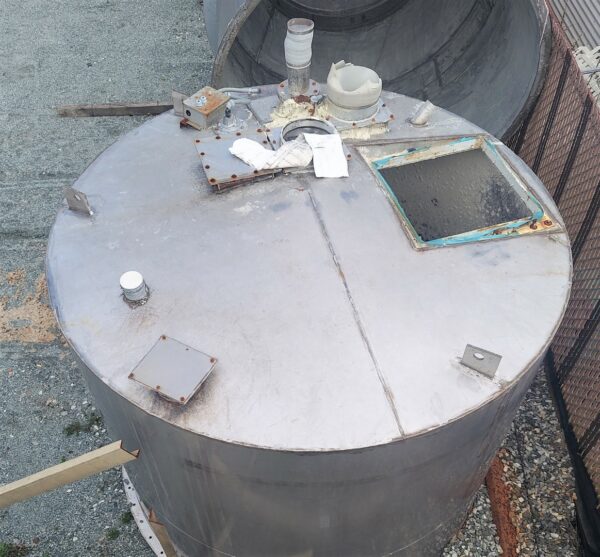

BIN: 8’ DIAMETER X 11’ 6” STRAIGHT SIDE X 14’ HEIGHT FROM TOP OF BIN COVER TO FLANGE WHERE BIN ACTIVATOR MOUNTS. BIN ACTIVATOR IS AND ADDITIONAL 46” TALL. BIN HAS 360 DEGREE MOUNTING SUPPORT RING WITH FOUR LUGS AND HAS A SEPARATE FLANGED JOINT 6’-4” DOWN FROM THE TOP FOR EASIER IN BUILDING ASSEMBLY. BIN HAS FOUR LIFTING LUGS AND A 30” FLUSH MOUNT MANWAY.

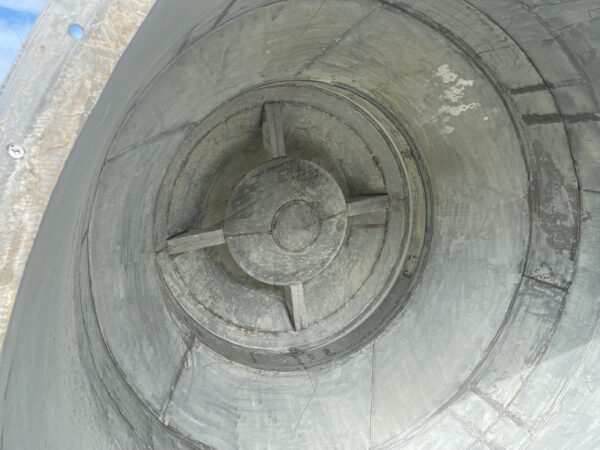

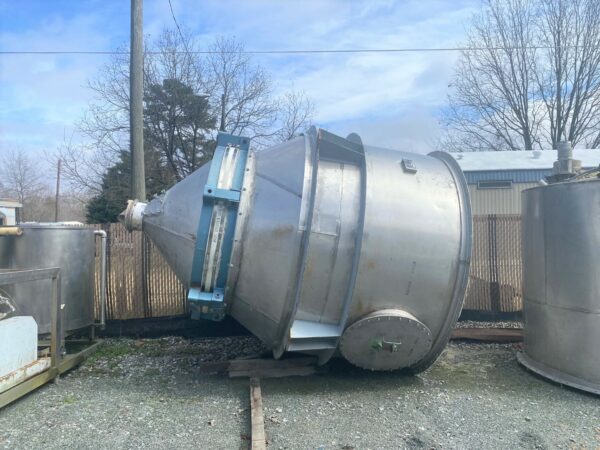

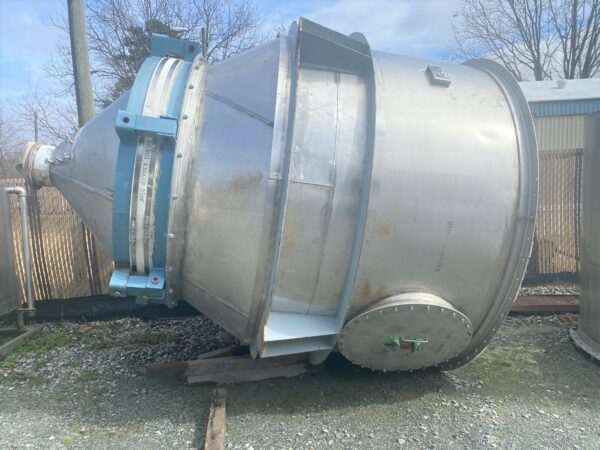

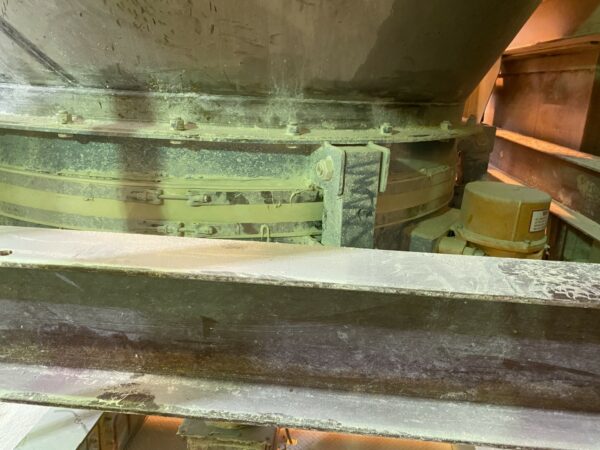

BIN ACTIVATOR: METALFAB 6’ DIAMETER 304 STAINLESS STEEL MATERIAL CONTACT PARTS. WHITE NEOPRENE BEADED SLEEVE. VIBRATOR IS 3 HP TENV 230/460/3/60. OUTLET OF BIN ACTIVATOR IS 12” O.D.

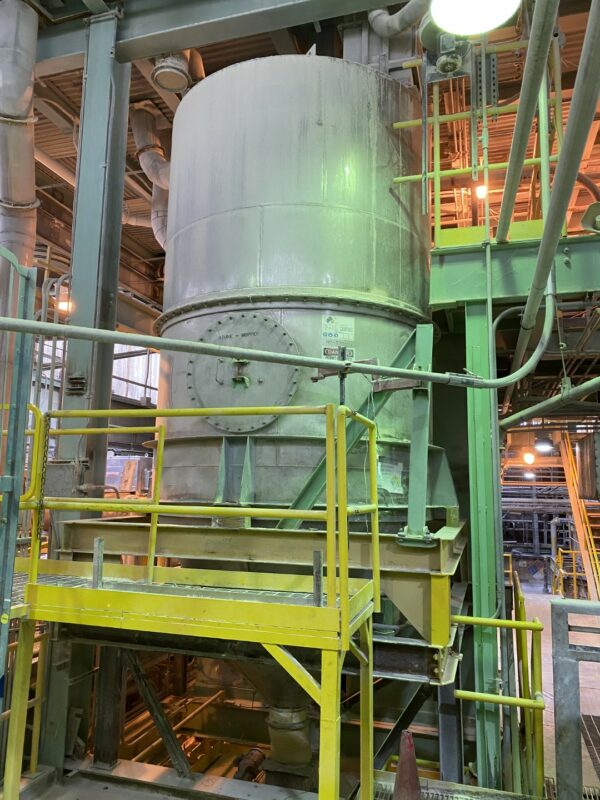

BIN HAS BEEN PRESSURE WASHED INSIDE AND OUT. BIN HAS BEEN PREVIOUSLEY USED INDOORS AS A PRODUCT RECEIVER AND PACK OUT BIN.

PRICE, FOB HAW RIVER, NC…………….. $ 26,000.00
